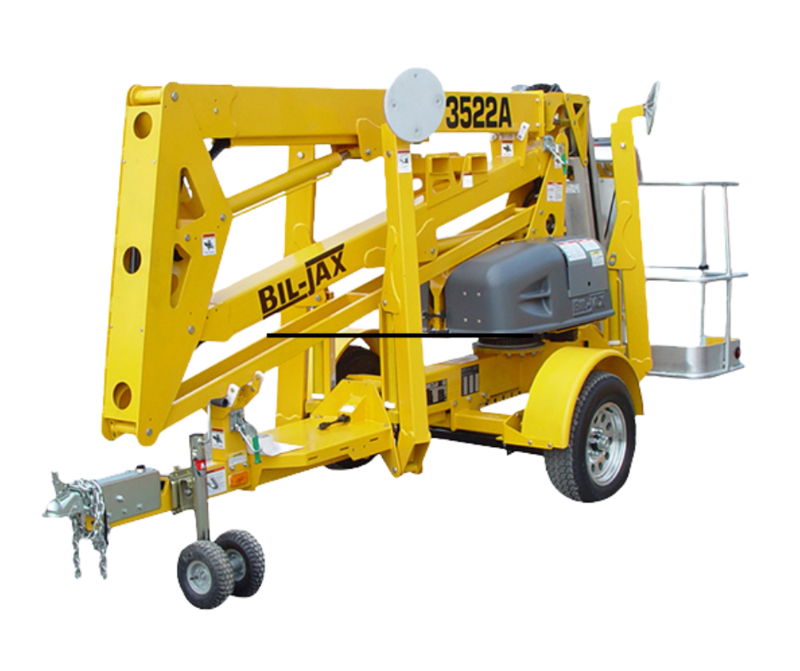

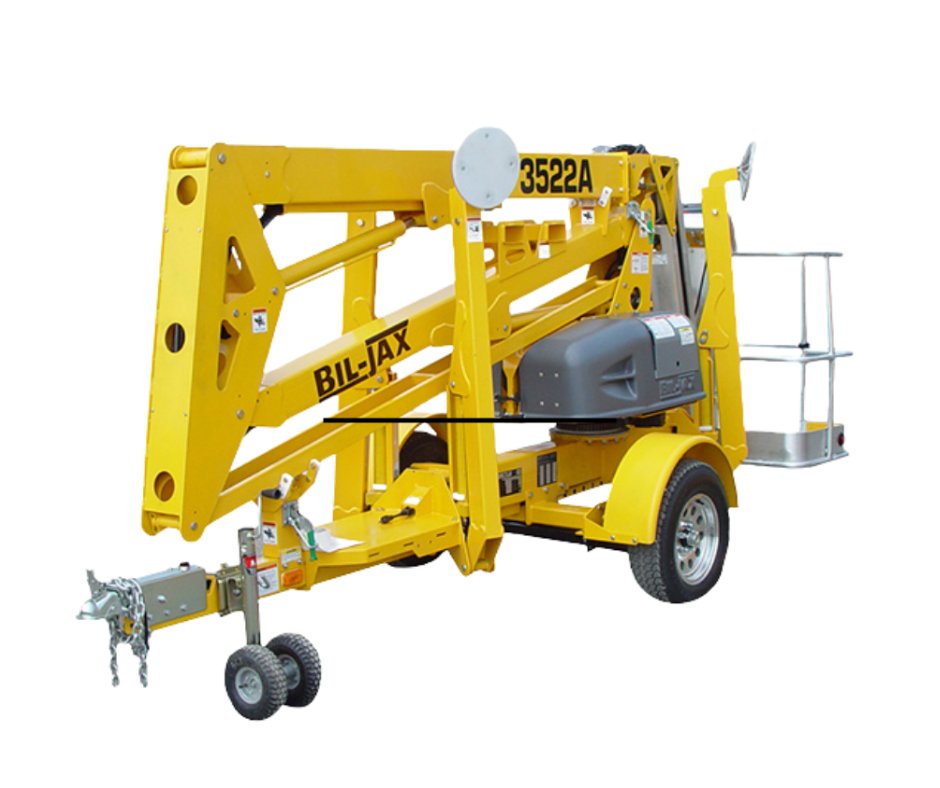

HAULOTTE 3522A TRAILER-MOUNTED BOOM LIFT

Haulotte 3522 Trailer-Mounted Boom Lift Rental
The Haulotte 3522 trailer-mounted boom lift offers an impressive 41' 9" maximum working height, making it perfect for outdoor construction, maintenance, and industrial applications. Equipped with an automatic leveling system and a self-leveling platform, this lift ensures stability and safety, even on uneven terrain. Ideal for tasks such as building maintenance, sign installation, tree trimming, and high-rise window cleaning, the OSHA-compliant Haulotte 3522 provides exceptional reach, maneuverability, and ease of use. Its towable design allows for easy transport, while the extendable boom delivers flexibility for contractors working in a variety of environments.
Specs:
Max Working Height: 41’ 9”
Lift Capacity: 500 lbs
Machine Width: 5’ 6”
Machine Length: 16’ 3”
Weight: 3,400 lbs
Can be towed by a standard half-ton pickup truck - No commercial driver’s license needed
Air / water lines and 110V GFI protected power to the platform
Automatic leveling system and self-leveling platform with tilt alarm/sensor
110V GFI protected outlet to platform
Hydraulic outriggers
Inboard 25 amp charger
Hydraulic surge brakes
