HILTI DD 150-U CORE DRILL

HILTI DD 150-U Core Drill Rental – High-Performance Coring for Concrete and Masonry

The HILTI DD 150-U Core Drill is a versatile, high-performance tool designed for efficient wet or dry drilling in concrete, masonry, and brick. With its powerful 2,200W motor and three-speed gearing, it delivers clean, precise holes for pipe penetrations, anchor installations, and utility lines. Whether used hand-held or rig-mounted, the DD 150-U offers maximum flexibility and control for contractors on commercial or residential job sites. Easy to operate and built for tough conditions, this core drill boosts productivity while ensuring professional-grade results on every project.

Specs:

1. Model: DD 150-U

2. Power Source: Electric (corded)

3. Rated Input Power: 2,200 W (120V)

4. Diameter Range:

   • 5/16 - 6-3/8 in

5. Core Bit Connection: BI+ (Quick-release system)

6. Speed Settings: 3-speed mechanical gearbox

   • 1st gear: 840 RPM

   • 2nd gear: 1,640 RPM

   • 3rd gear: 3,070 RPM

7. Maximum Drilling Depth: Dependent on bit length and rig

8. Wet/Dry Drilling: Yes (wet drilling recommended for concrete)

9. Weight (Tool only): Approx. 19.8 lbs

10. Dimensions: 20.3" L x 5.1" W x 6.3" H

11. Water Supply Connection: Built-in (standard garden hose fitting)

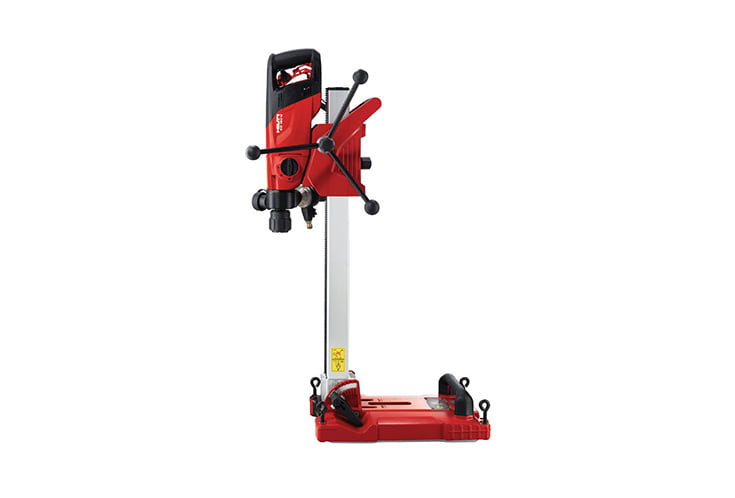

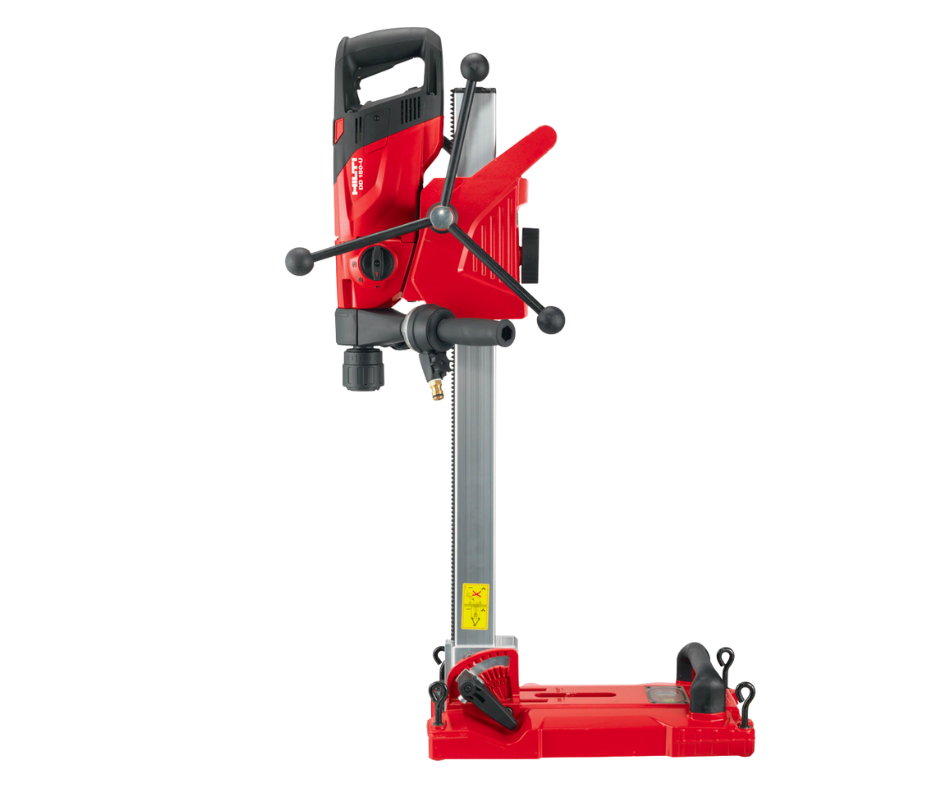

12. Mounting: Compatible with Hilti drill stand DD-ST 150-U

13. Applications:

    • Concrete and reinforced concrete

    • Brick, block, and masonry

    • Pipe penetrations, cable trays, HVAC openings, anchor installations
