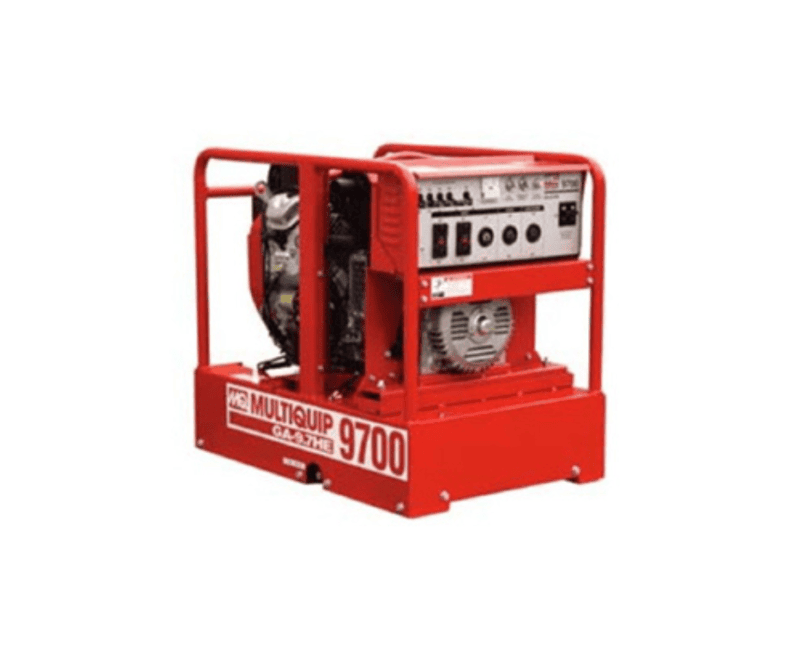

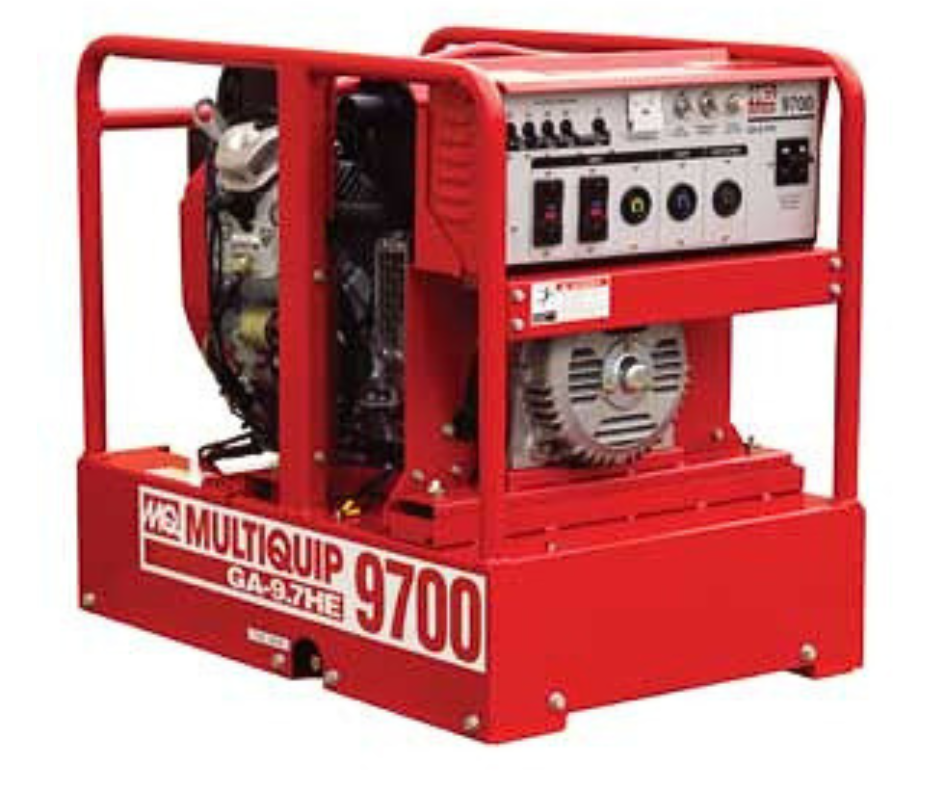

MULTIQUIP 9700W GENERATOR

MQ GA97HEA Generator Rental – Industrial-Grade Power for Heavy-Duty Applications

The MQ GA97HEA Generator is an industrial-grade, high-output machine engineered for the most demanding job site power needs. Delivering up to 9,700 watts of reliable power, this generator is perfect for running high-amperage tools, compressors, and multiple systems simultaneously. Powered by a Honda GX630 engine, it ensures consistent performance and long run times in tough environments. Built with a heavy-duty steel frame and lifting eye for easy transport, the GA97HEA is designed with contractors in mind. Ideal for large-scale construction, concrete work, and remote power needs, this generator offers unmatched durability and efficiency for professional results.

• Twin duplex receptacles and three twist-lock receptacles for job site versatility

• 100% copper windings for maximum conductivity

• Up to 10 hours of continuous run time

• Heavy-duty 1” (25 mm) steel pipe frame and shock mounts protect the generator

• Includes folding lifting bale as standard equipment

• Powered by a twin-cylinder Honda GX630 engine with low-oil shutdown, automatic idle control

• Full panel GFCI protection - OSHA and NEC compliant

Specs:

• Model: MQ GA97HEA

• Power Output:

  • Maximum Output: 9,700 watts

  • Continuous Output: 8,000 watts

• Voltage: 120/240V, Single Phase

• Receptacles:

  • 5-20R, 125V GFCI duplex outlets

  • L5-20R,125V T-Lock 20A

  • L5-30R, 125V T-Lock 30A

  • L14-30R, 125/250V T-Lock 30A

• Engine: Honda GX630, V-Twin, 688cc, air-cooled, 4-stroke OHV

• Starting System: Electric start with recoil backup

• Fuel Type: Gasoline

• Fuel Tank Capacity: Approx. 11.7 gal

• Run Time: Up to 8.5 hours at full load

• Noise Level: Approx. 79 dBA at 23 feet

• Frame: Steel roll cage with central lifting eye

• Dimensions: Approx. 32" L x 22.5" W x 31.5" H

• Dry Weight: Approx. 342 lbs

• Emissions Compliance: EPA and CARB compliant
